Packaged Products

Options

  • Air extraction unit and nitrogen filler.
  • Gussetting unit.​

Technical specifications

  • Wrapping Material:                                                                     All Heat Sealable.
  • Product Maximum Length:                                                          200mm.
  • Product Maximum Width:                                                            60mm.
  • Product Maximum Height:                                                           40mm.
  • Power Requirement:                                                                   220V S.Phase / 440V 3 Phase + Earth.
  • Heaters' Consumption:                                                               2KW.
  • Servo Motors:                                                                             Qty: 3
  • Standard Equipment                                                                   PLC Controlled Photocell.
  • Standard Equipment                                                                   PLC Controlled Temperature Controller.

kinematics

  • Maximum reel diameter                                                              300mm
  • Maximum reel width                                                                    250mm​​

Speed

  • ​Up to 310 packs per minute depending upon the size of the product & the feeding system installed.

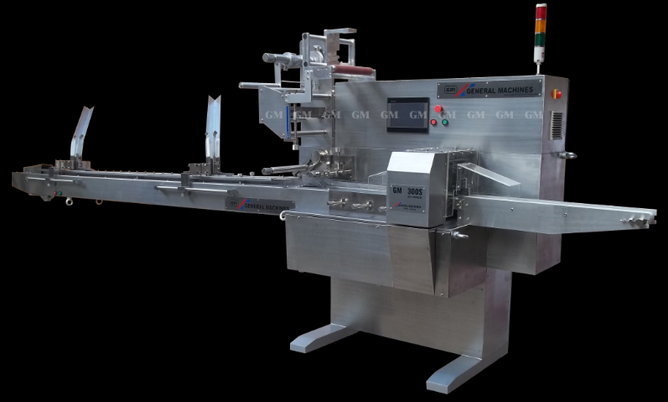

GM-300s (C2-Series) (Servo) (HORIZONTAL FORM FILL & SEAL MACHINE)

description


GM-300s (servo) produces a three side sealing pillow pack from a roll of heat-sealable packaging film. This machine is ideal for wrapping products like biscuits, candies, chocolate bars and bakery products like buns, small cakes, cookies, ice cream bars & ice lollies, pharmaceutical products like capsule packs & bandages etc., soaps, tooth brushes, pens and in hardware, bearing & many rubber seals, electrical parts, auto parts and much much more.
