Packaged Products

Options


  • Air extraction unit and nitrogen filler.
  • Gussetting unit.​

kinematics


  • Maximum reel diameter                                                              330mm
  • Maximum reel width                                                                    450mm​

Speed

​
  • Up to 150 packs per minute depending upon the size of the product.

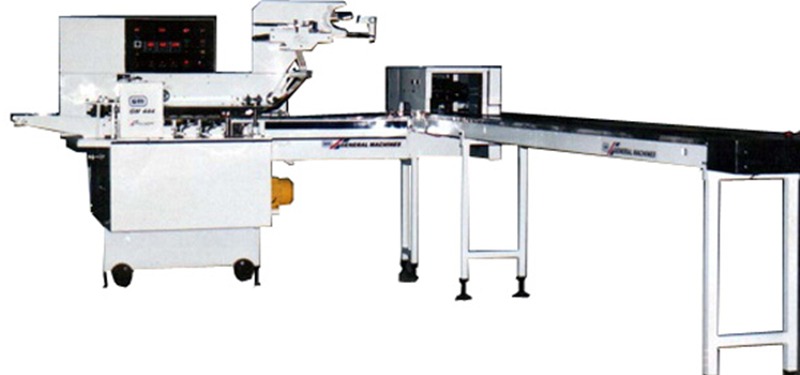

GM-555(On-Edge) (HORIZONTAL FORM FILL & SEAL MACHINE)

description


GM-555(On-Edge) produces a three side sealing pillow pack from a roll of heat-sealable packaging film. This machine is ideal for wrapping products like biscuits, candies, chocolate bars and bakery products like buns, small cakes, cookies, ice cream bars & ice lollies, pharmaceutical products like capsule packs & bandages etc., soaps, tooth brushes, pens and in hardware, bearing & many rubber seals, electrical parts, auto parts and much much more.

Agents Required For:

Turkey, Brazil, Indonesia, Malaysia, USA, Canada, China, India, Great Britain & Sweden

pACKAGING MACHINERY & WAFER PLANT



Technical specifications


  • Wrapping Material:                                                                     All Heat Sealable.
  • Product Maximum Length:                                                          200mm.
  • Product Maximum Width:                                                            55mm.
  • Power Requirement:                                                                   220V S.Phase / 440V 3 Phase + Earth.
  • Heaters' Consumption:                                                               2KW.
  • Motors:                                                                                       1HP & 1/4HP.
  • Standard Equipment                                                                   Photocell.
  • Standard Equipment                                                                   Digital Temperature Controller.
